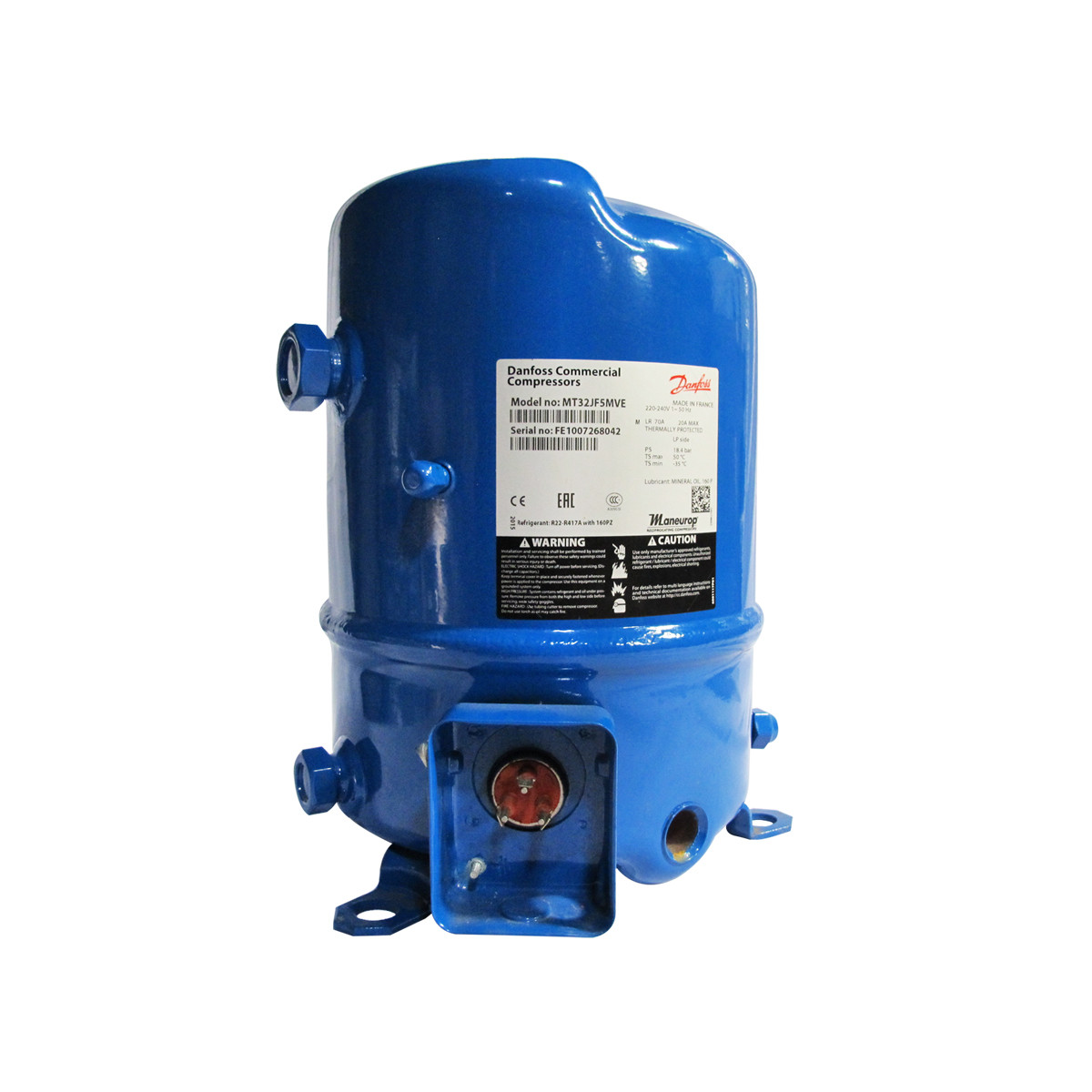

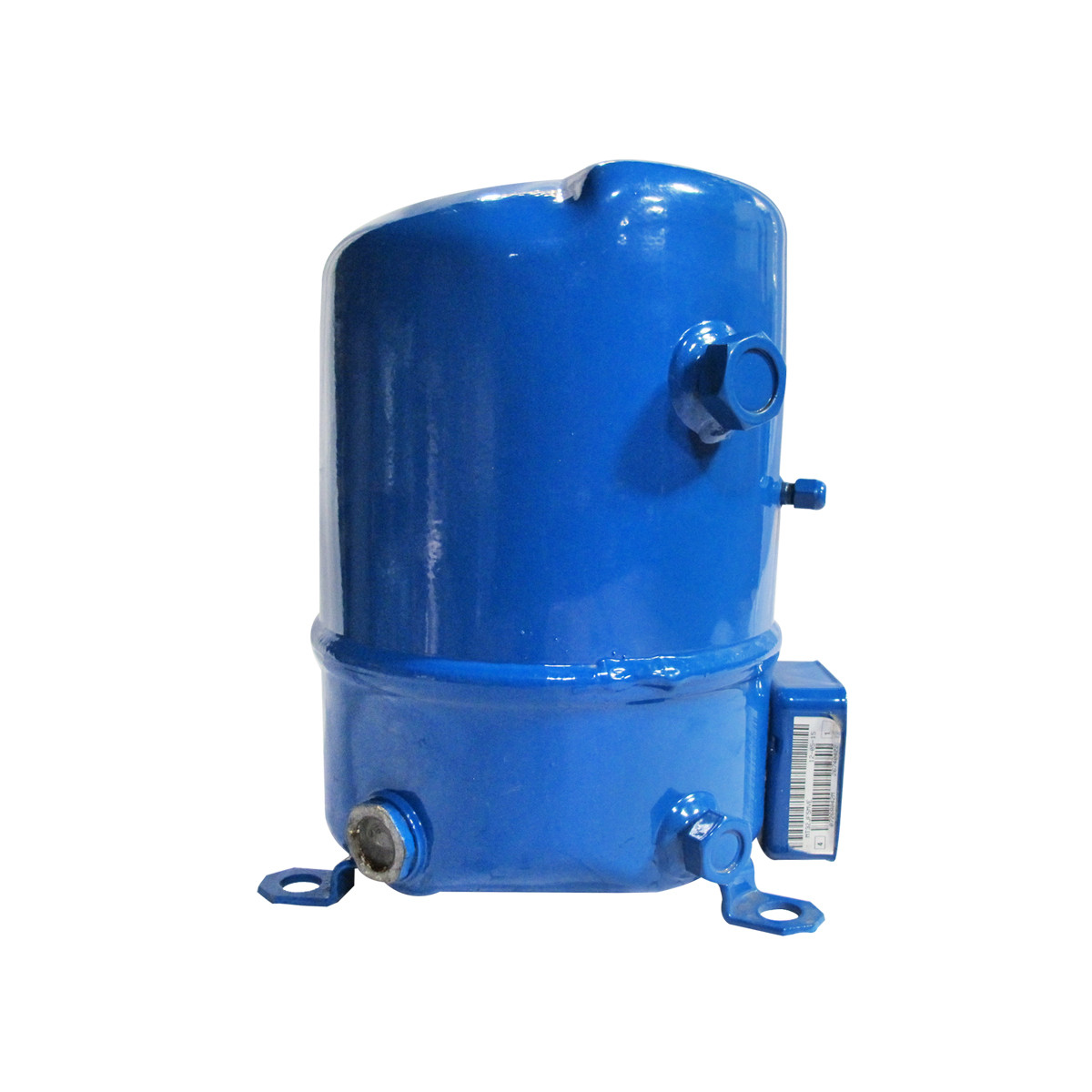

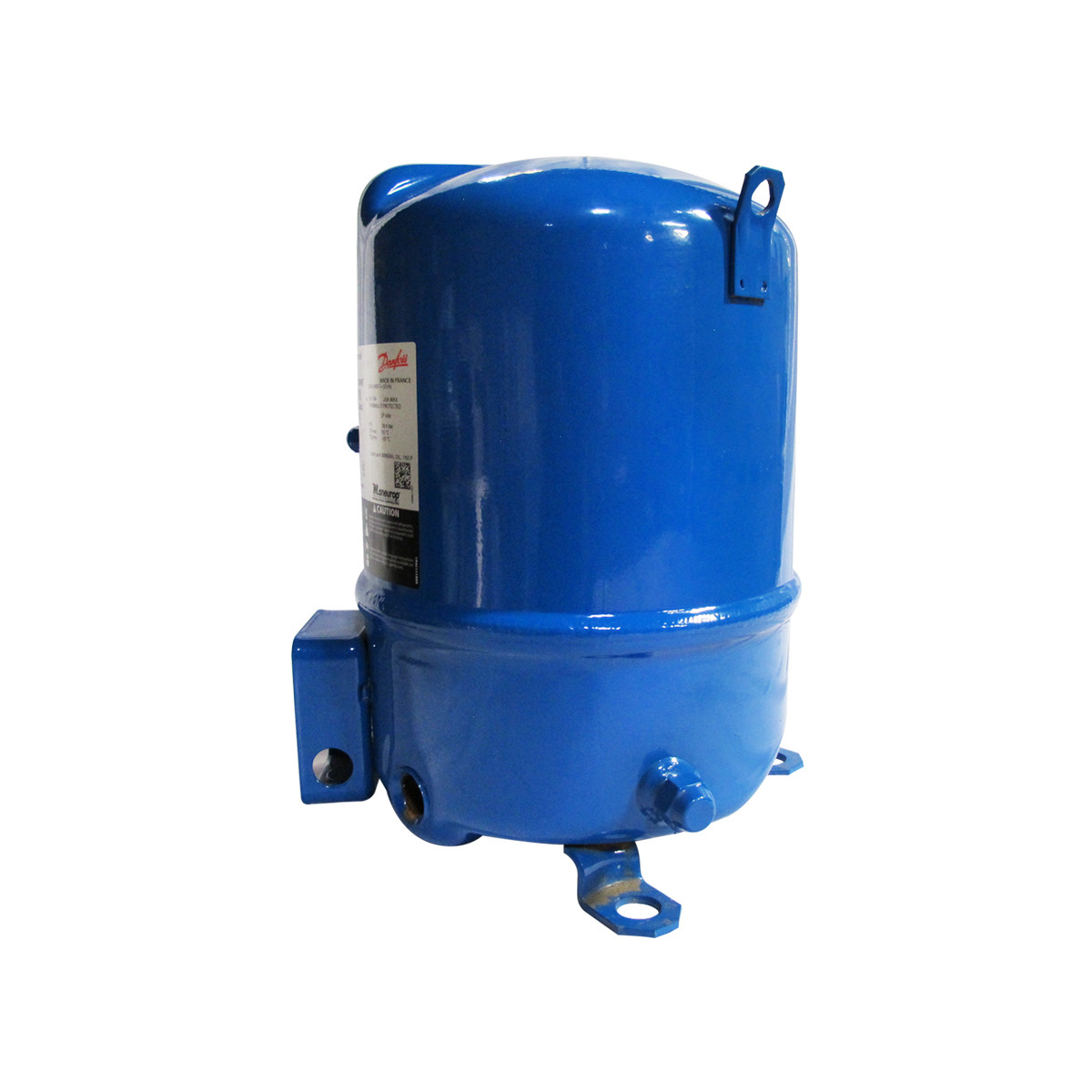

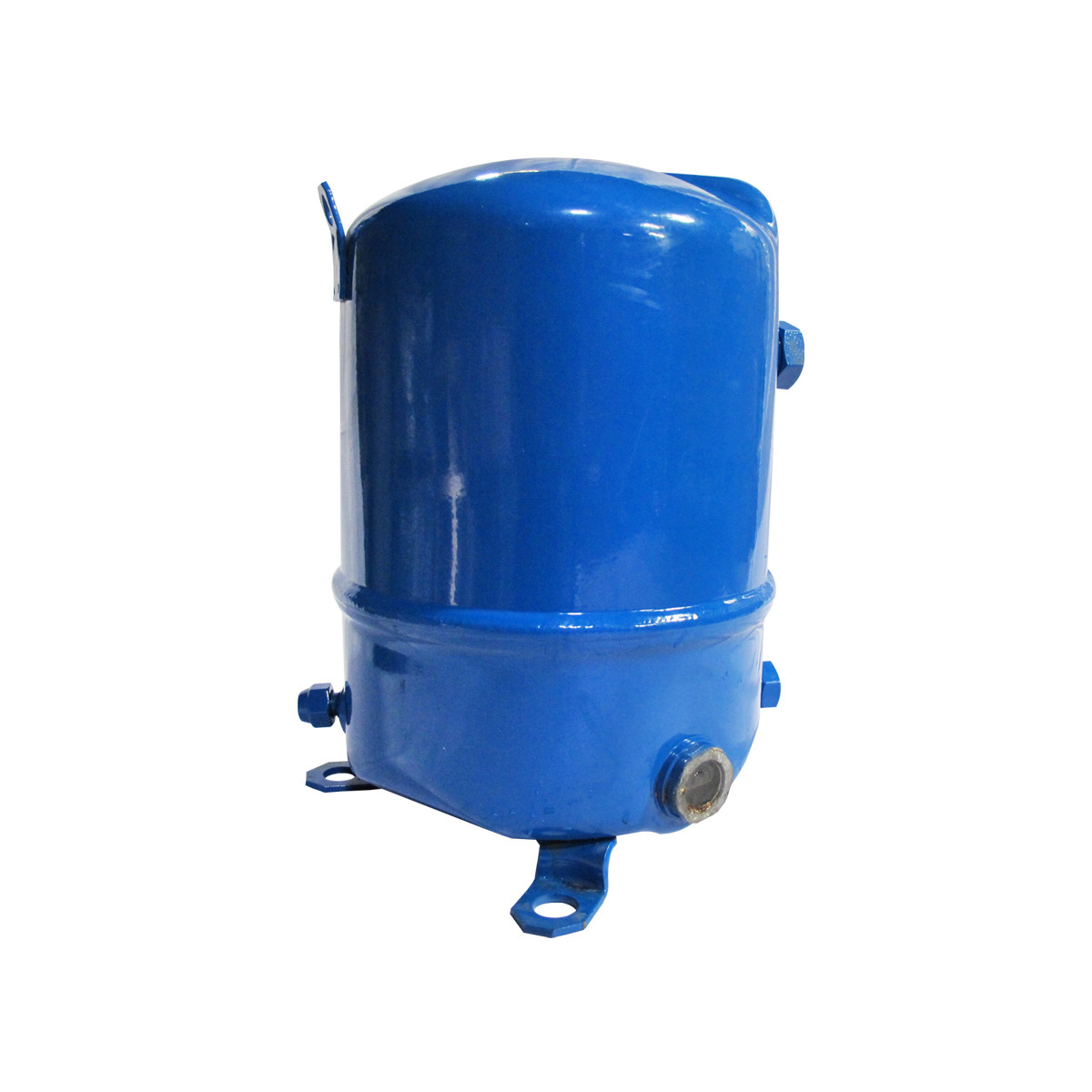

Danfoss Compressor MT32JF5MVE
Rp 8.295.040

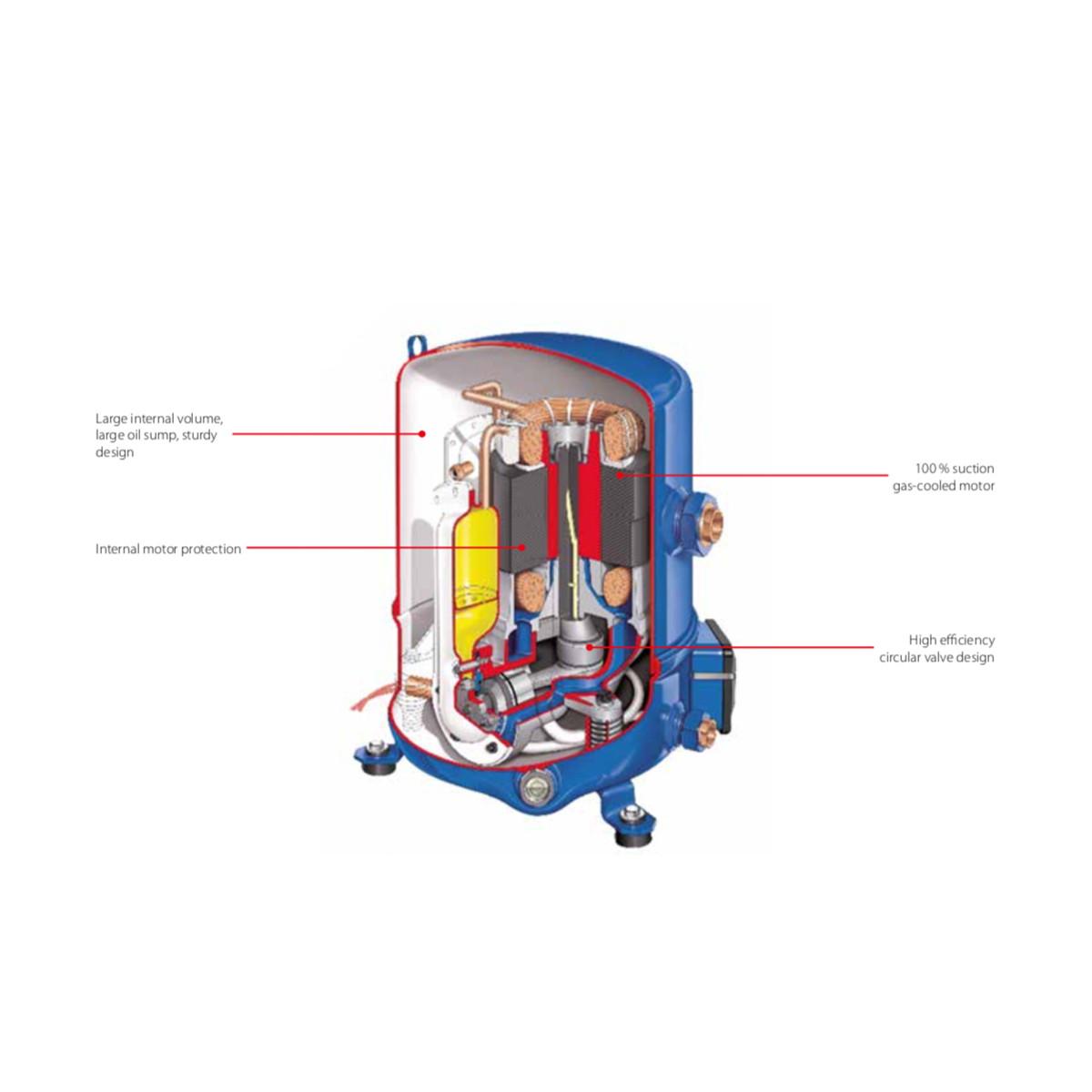

Danfoss adalah Perusahaan multinasional Denmark yang Terkemuka, didirikan pada Tahun 1933, memproduksi banyak produk Berkualitas serta telah digunakan di seluruh Dunia termasuk Indonesia. Compressor Danfoss Maneurop dengan seri MT dan MTZ adalah Kompresor yang Andal serta dirancang untuk aplikasi suhu Evaporasi Sedang dan Tinggi. Telah banyak dipakai di seluruh Dunia karena memiliki Kualitas yang Sangat Baik. Kompresor jenis Reciprocating atau lebih sering disebut Kompresor Piston, menggunakan sistem Piston.. Dapat Diaplikasikan pada beberapa Gas Refrigeran seperti R407A, R407C, R407F, R134A, R404A, R507A dan R22.
Danfoss Compressor MT32JF5MVE
Details
- Brand DANFOSS
- Brand Danfoss
- Type Maneurop
- Model Number MT32JF5MVE
- Net Weight (Kg) 25
- Type Designation Compressor Hermetic
- Technology Reciprocating
- Cylinder 1
- Nominal HP 2.7
- Connection Type Rotolock
- Refrigerant R22
- Voltage 230V, 50Hz, 1 Phase
- Oil Mineral
- Application -
Tags
32jfmve 5vm compressor DANFOSS hermetic kompresor mt mt32 mt32jfmve mt32mve mtz piston reciprocating torakKeunggulan lainnya yang dimiliki Kompresor Danfoss Maneurop seri MT dan MTZ selain Perawatannya yang Mudah, Kompresor Danfoss Maneurop seri MT dan MTZ dapat di gunakan untuk Air Delivery dan Aplikasi dengan Tekanan yang Tinggi. Sangat Serbaguna karena dapat Diaplikasikan di Berbagai Macam Aplikasi Pendingin berikut:
- Walk-in Freezer dan Ruang Pendingin
- Pemrosesan dan Penyimpanan Makanan Beku
- Blast Freezer
- Low Temp Freezer
- Mesin Es Krim
- Kulkas Showcase
- Pendingin Air
- AC Berkapasitas Besar
- Dengan Pengoperasian dalam Kondisi Ekstrim
- Tidak Memerlukan Sirkulasi Udara Disekitar Kompresor
- Memiliki Keandalan Tinggi serta Tahan Lama
Refrigerant: R22
Phase: 1
Approval Standard: CCC CE
Auxiliary Winding Resistance (Start Winding)for Single-phase Compressors [Ohm]: 4.23 Ohm
Brand Technique: Reciprocating Compressor
Capacity Control: Fixed Speed
Capacity of Capacitor A: 25 µF
Capacity of Capacitor B: 135 µF
Capacity of Capacitor C: 10 µF
Color: Blue
Compressor Power Supply [V/Ph/Hz]: 220-240/1/50
Configuration Code: Single
Connection Type: Rotolock
Cylinder: 1
Description: MT032-5
Diameter [mm]: 224 mm
Discharge Connection Height [mm]: 68 mm
Discharge Connection MountingTorque [Nm]: 80 N-m
Discharge Connection Pipe Size [in]: 0.5 in
Discharge Connection Rotolock Size [in]: 1 in
Discharge Connection Size [in]: 1 in
Discharge Connection Sleeve Pipe Size [in]: 0.5 in
Drawing Number: 8501021e
Economizer: No
Factory HP [bar]: 25 bar
Factory LP [bar]: 25 bar
Fitting remark: Shipped with Rotolock Version Only
Fitting Sleeve: ODF
Fitting Standard: Rotolock
Frequency [Hz]: 50
Gauge Port HP: None
Gauge Port LP: Schrader
Generation Code: M
Glass Mounting: Threaded
Glass Torque [Nm]: 50 N-m
GP LP Torque [Nm]: 15 N-m
Gross Weight: 27.08 Kg
High Value of Nominal Voltage at 50Hz [V]: 240 V
High Value of Nominal Voltage at 60Hz [V]: 0 V
High Value of Voltage Range at 50Hz [V]: 264 V
High Value of Voltage Range at 60Hz [V]: 0 V
IP Protection Class: IP55 (with Cable Gland)
Low Value of Nominal Voltage at 50Hz [V]: 220 V
Low Value of Nominal Voltage at 60Hz [V]: 0 V
Low Value of Voltage Range at 50Hz [V]: 198 V
Low Value of Voltage Range at 60Hz [V]: 0 V
LRA: 70 A
Main Winding Resistance for Single-phase Compressors [Ohm]: 0.8 Ohm
MCC: 20 A
Model Number: MT32JF5MVE
Motor Protection: Internal Overload Protector
Mounting Torque [Nm]: 15 N-m
Nominal Cooling Capacity 60 kBTU/h: 33.11 KBtu/h
Nominal Cooling Capacity at 50Hz: 7.3 kW
Nominal Cooling Capacity at 60Hz: 9.7 kW
Number of Starts per Hour [Max]: 12
Oil Charge [L]: 0.95 L
Oil Equalization: 3/8'' flare SAE
Oil Equalization Torque [Nm]: 30 N-m
Oil Reference: 160P
Packaging Height [mm]: 500 mm
Packaging Length [mm]: 1150 mm
Packaging Weight [Kg]: 331 kg
Packaging Width [mm]: 800 mm
Power Connections: Spade
Refrigerant Charge [kg] [Max]: 2.5 kg
Relief Valve: None
Rotational Speed at 50Hz [rpm]: 2900 rpm
Rotational Speed at 60Hz [rpm]: 0 rpm
Segment Usage: Air-conditioning
Refrigeration: MT

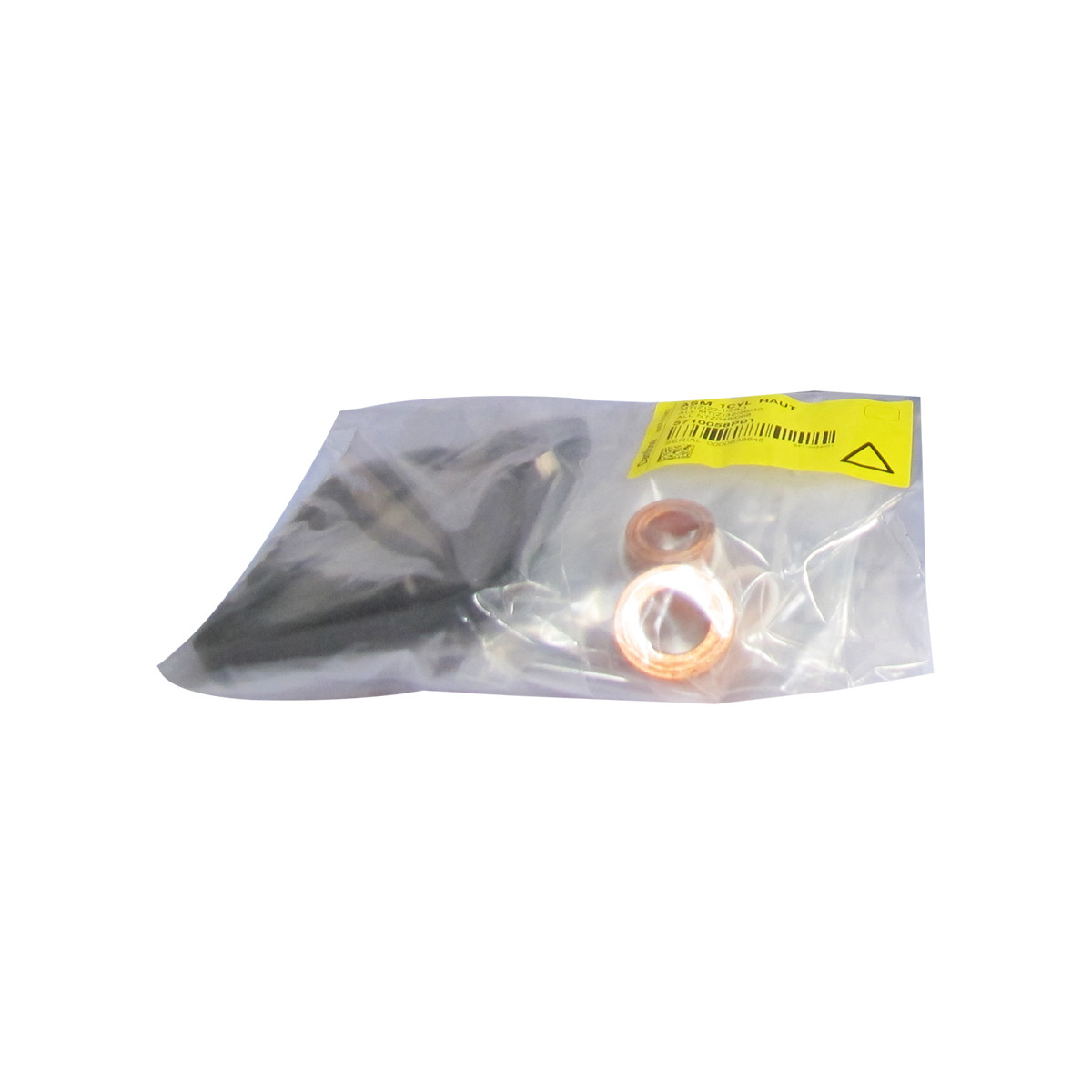

Shipped Fittings: Suction and Discharge Solder Sleeves, Rotolock Nuts and Gaskets
Shipped Instructions: Installation Instructions
Shipped Mounting: Mounting Kit with Grommets, Bolts, Nuts, Sleeves and Washers
Shipped Oil: Initial Oil Charge
Suction Connection Height [mm]: 263 mm
Suction Connection Mounting Torque [Nm]: 90 N-m
Suction Connection Pipe Size [in]: 0.625 in
Suction Connection Rotolock Size [in]: 1.25 in
Suction Connection Size [in]: 1.25 in
Suction Connection Sleeve Pipe Size [in]: 0.625 in
Swept Volume [cm3]: 53.86 cm3
Test Dif [bar] [Max]: 30 bar
Test HP [bar] [Max]: 30 bar
Test LP [bar] [Max]: 25 bar
Torque Earth [Nm]: 2 N-m
Total Height [mm]: 333 mm
Viscosity [cP]: 32 cP
Voltage of Capacitor A [V]: 440 V
Voltage of Capacitor B [V]: 330 V
Voltage of Capacitor C [V]: 440 V
